Instruments for Permeation Measurement - Service Measurements


Ultra-low WVTR Measurement
~10-5 g/m2/day (@40°C)

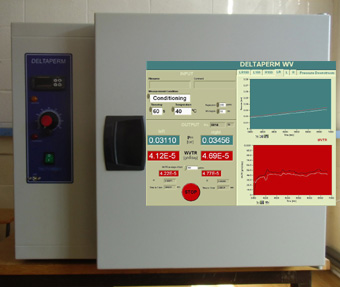

DELTAPERM
  • Universal Permeation Tester for gases and vapours
  • ISO 15106-5 (2020)
  • Spec: WVTR < 5×10-5g/m2/day (@40°C)
  • Temperature range up to 100°C
  • Variable RH
  • No carrier gas required
  • Options:
    • Extended range (>100g/m2/day)
    • Diffusion and sorption calculations

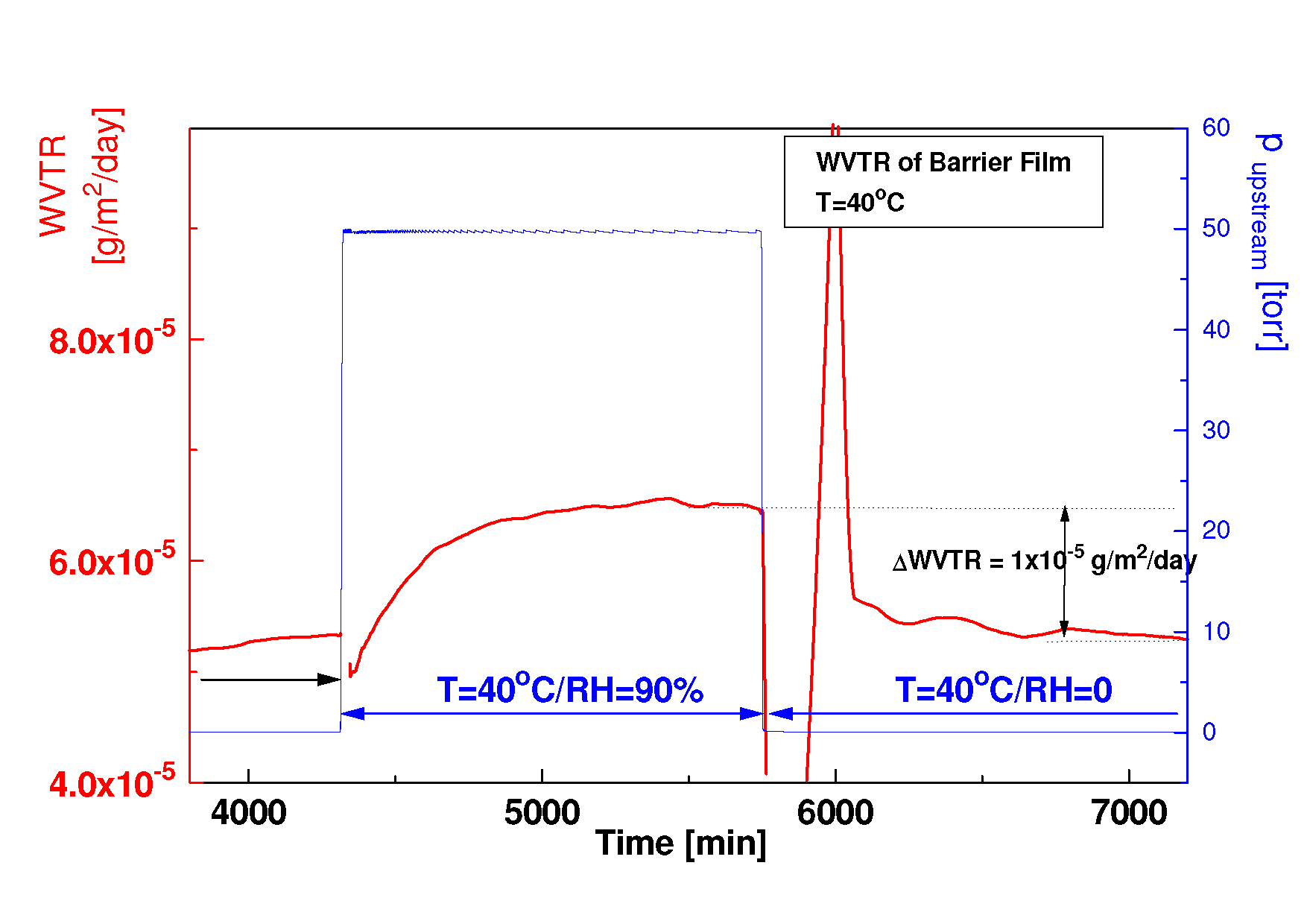

The example shows a measurement of the WVTR of a barrier film at T=40°C. The left half of the red curve shows a WVTR of about 6.5×10-5g/m2/day @40°C/90%RH. The right part of the red curve measured without water vapour @40°C/0%RH is clearly distinguishable with a WVTR of about 5×10-5 g/m2/day.

Bridgestone World Solar Challenge 2025

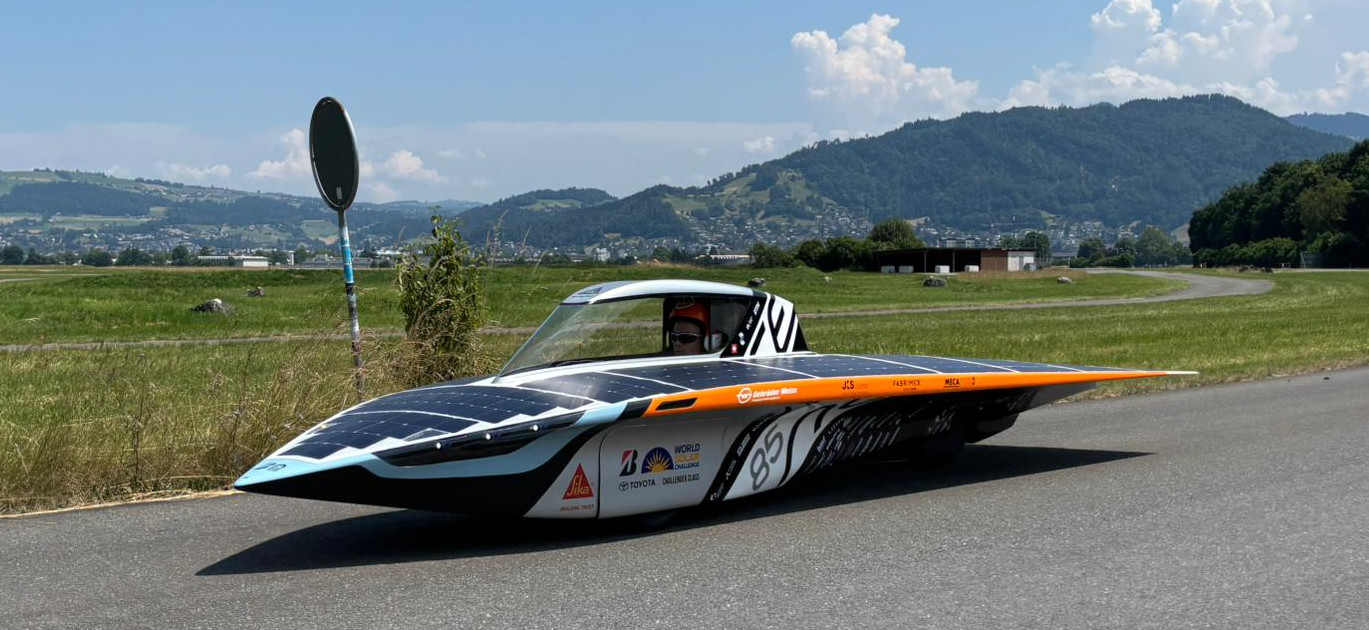

Technolox Ltd. is proud to sponsor the aCentauri racing team (ETH Zurich, Switzerland). In countless hours the team has build the state-of-the-art solar racing car Silvretta.

In the 2025 race they finished 11th out of 26 teams. Silvretta raced through the Australian Outback with an average speed of 68 km/h.
Excellent teamwork!

Bridgestone World Solar Challenge 2025
